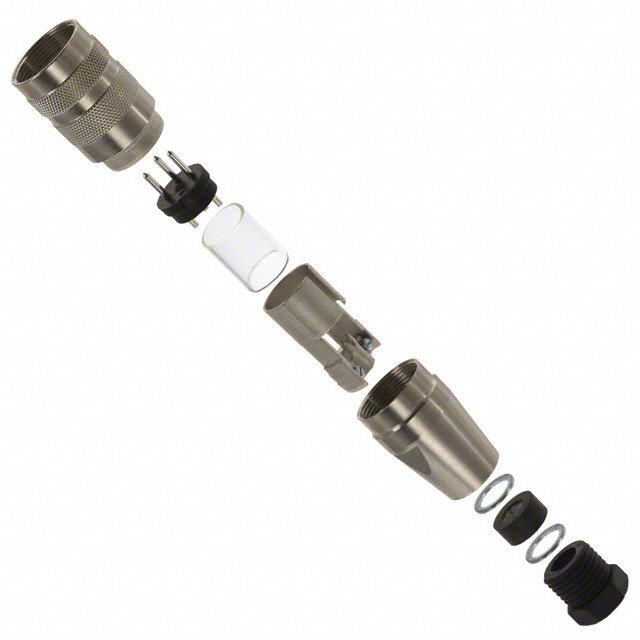

Image is for your reference only,please check specifications for details

C091 31H003 100 2 - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC13225058
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
AMPHENOL TUCHEL C091 31H003 100 2 Circular Connector, C091D Series, Cable Mount Plug, 3Contacts, Solder Pin, Metal Body
Stock Locations:
Availability:
173 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 18.78

Updated at 13/05/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Solder Termination, Male Cable Connector
All metal for EMI applications. Standard threaded coupling. Die-cast brass shells with nickel-plating for 6 mm cables, 24-20 AWG wires.* IP Rating:** IP67 (water resistant). ** Current Rating:** 60-250 V, 3-5 A. Shielded. Solder area is tin-plated on receptacles. ** Series C091D Right-Angle Series Specifications.** Rated IP67 in mated condition. ** Current Rating:** 5 A; 12 and 14 contact solder termination — 3 A. 20-26 AWG wires. ** Materials. Dielectric Material:** Thermoplastic; Housing — Zinc alloy, nickel-plated. Locking Clip — Brass; Seal — Neoprene. Also available for 8 mm in 7 to 14 contacts and in gold-plating contacts in 3 DIN to 8 DIN contacts. Metal threaded coupling ACC to IEC 130-9. ** Cable Connector Length:** 2.3".
The connector have a rated voltage of 300 V.

Show

C091 31H003 100 2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Pins	3 Pin
Number of Contacts	3 Contact
Gender	Male
Contact Plating	Silver
Current Rating	5 A
Orientation	Straight
Number of Positions	3 Position
Current Rating (Max)	5 A
Voltage Rating	300 V
	Show
Size-Length	57 mm
Contact Material	Brass
Insulation Material	Plastic
Operating Temperature	-40℃ ~ 100℃
Housing Material	Zinc Die-Cast
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
