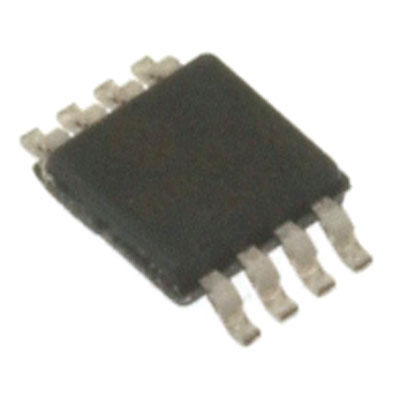

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD8129/AD8130 are designed as receivers for the transmission of high speed signals over twisted-pair cables to work with the AD8131 or AD8132 drivers. Either can be used for analog or digital video signals and for high speed data transmission.
The AD8129/AD8130 are differential-to-single-ended amplifiers with extremely high CMRR at high frequency. Therefore, they can also be effectively used as high speed instrumentation amps or for converting differential signals to single-ended signals.
### Features and Benefits
High Speed
AD8130: 270 MHz, 1090 V/µs @ G = +1
AD8129: 200 MHz, 1060 V/µs @ G = +10
High CMRR
94 dB min, dc to 100 kHz
80 dB min @ 2 MHz
70 dB @ 10 MHz
High input impedance: 1 MΩ differential
Low noise
AD8130: 12.5 nV/√Hz
AD8129: 4.5 nV/√Hz
Input common-mode range ±10.5 V
Low distortion, 1 V p-p @ 5 MHz:
AD8130, -79 dBc worst harmonic @ 5 MHz
AD8129, -74 dBc worst harmonic @ 5 MHz
User-adjustable gain
No external components for G = +1
Power supply range +4.5 V to ±12.6 V
Power-down

Show

AD8130ARM Specifications
