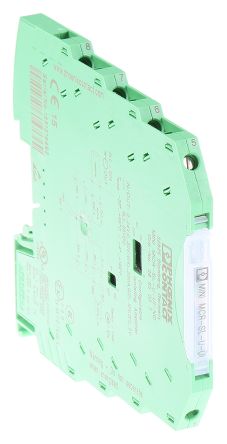

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **3-way Isolation Amplifier to Monitor 0-24/30VDC Power Supplies**
- **Featured List:**
- * Input options, 0-24VDC, 0-30VDC
- * Output options, 0-20mA, 4-20mA, 0-10V, 2-10V, 0-5V, 1-5V
- * Configured using dip switches
- * 3-way isolated
- * 24 VDC powered on module or via DIN rail bus connector
- * 6.2mm wide
- * Screw terminals
2865007 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Snap-In |
| Number of Pins | 8 Pin |
| Current Rating | 20 mA |
| Number of Positions | 1 Position |
| Operating Temperature (Max) | 65 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 50 V |
| Supply Voltage | 24 VDC |
| Show | |
| Size-Length | 4.0 in |
| Size-Width | 0.2 in |
| Size-Height | 3.7 in |
| Color | Green |
| Operating Temperature | -20℃ ~ 65℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8543709650 |
| ECCN Code | EAR99 |
