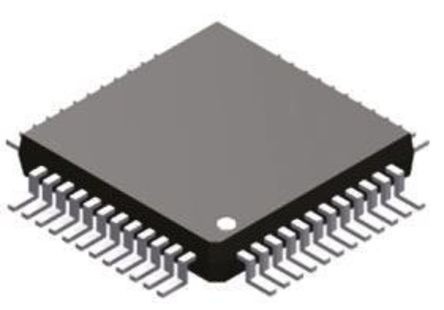

TLK100PHP - TI
Manufacturer:
TI
ManyChip's Part#:
MC20297926
Category:
Interface IC, Interface Controller
Package:
HTQFP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TLK100PHP Ethernet Controller, 100Mbps, IEEE 802.3u, 2.38V, 3.6V, TQFP, 48Pins
Stock Locations:
Availability:
493 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLK100PHP is a single-port Ethernet Physical-layer Transceiver for 10Base-T and 100Base-TX signalling. It integrates all the physical-layer functions needed to transmit and receive data on standard twisted-pair cables. This device supports the standard media independent interface (MII) for direct connection to a media access controller (MAC). The TLK100 is designed for power-supply flexibility and can operate with a single 3.3V power supply or with combinations of 3.3, 1.8 and 1.1V power supplies for reduced power operation. It uses mixed-signal processing to perform equalization, data recovery and error correction to achieve robust operation over CAT 5 twisted-pair wiring. It not only meets the requirements of IEEE 802.3, but maintains high margins in terms of cross-talk and alien noise.
<200mW Typical low power consumption
Cable diagnostics
Error-free operation up to 200m under typical conditions
Energy detection mode
IEEE 802.3u Auto-negotiation and parallel detection
IEEE 802.3u ENDEC, 10BASE-T Transceivers and filters
±16kV JEDEC HBM Bus I/O protection
IEEE 802.3u PCS, 100Base-TX Transceivers
Enables IEEE1588 Time-stamping
IEEE 1149.1 JTAG
Integrated ANSI X3.263 compliant
Green product and no Sb/Br

Show

TLK100PHP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	HTQFP-48
Supply Voltage (DC)	2.38V (min)
Supply Current	10.0 µA
Number of Channels	1 Channel
Number of Positions	48 Position
Power Dissipation	189 mW
Data Rate	100 kbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	189 mW
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.38 V
	Show
Size-Length	7.2 mm
Size-Width	7 mm
Size-Height	1.05 mm
Cable Length	200 m
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
