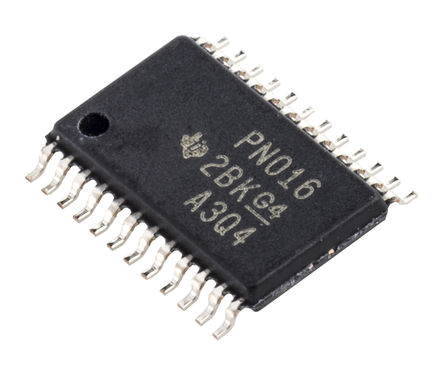

Image is for your reference only,please check specifications for details

TPD12S016PWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3016163
Category:
Interface IC, Interface Controller
Package:
TSSOP-24
Datasheet:
Datasheet 3D Model
Description:
Value-Line HDMI Companion Chip for Portable Applications 24-TSSOP -40℃ to 85℃
Stock Locations:
Availability:
592 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.35

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD12S016PWR is a single-chip High Definition Multimedia Interface (HDMI) device with auto-direction sensing I²C voltage level shift buffers, a load switch and integrated low capacitance high-speed electrostatic discharge (ESD) transient voltage suppression (TVS) protection diodes. A 55mA current limited 5V output (5V_OUT) sources the HDMI power line. The control of 5V_OUT and the hot plug detect (HPD) circuitry is independent of the LS_OE control signal and is controlled by the CT_HPD pin, which enables the detection scheme to be active before enabling the HDMI link. The SDA, SCL and CEC lines pull up to VCCAon the A side. On the B side, the CEC_B pin pulls up to an internal 3.3V supply rail, SCL_B and SDA_B each pull up to the 5-V rail (5V_OUT). The SCL and SDA pins meet the I²C specification and drive up to 750pF capacitive loads, exceeding the HDMI 1.4 specifications.
Conforms to HDMI compliance tests without any external components
Supports HDMI 1.4 data rate
Matches class D and class C pin mapping
Auto-direction sensing i²C level shifter with one-shot circuit to drive a long HDMI cable
Back-drive protection on HDMI connector side ports
Integrated pull-up and pull-down resistors per HDMI specification
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
