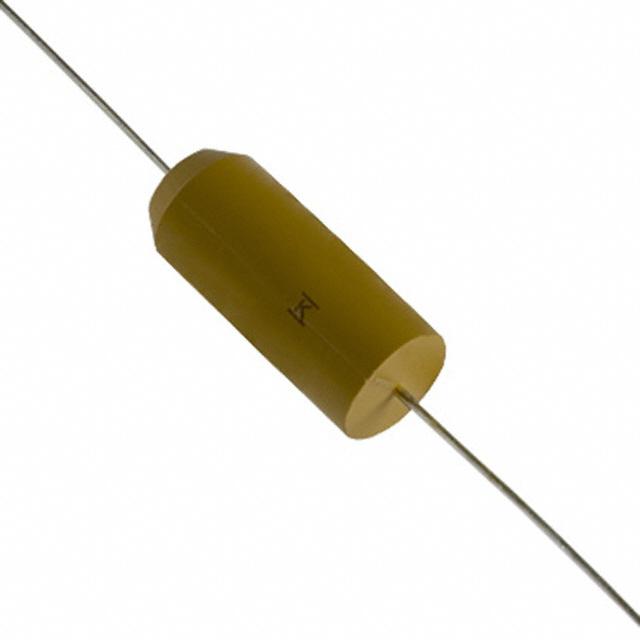

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* ** Capacitance Range:** 0.1 - 330pF
* ** Voltage Range:** 2 - 50V
* ** Tolerance:** ±20%, ±10%, ±5%
* ** Case Size:** A, B, C, D, E & F
The Kemet T322 and T323 (CX01 & CX05) Axial leaded Series offers a complete line of extended range molded solid tantalum capacitors designed specifically for high speed automatic insertion applications. These capacitors offer an extremely high capacitance-to-volume ratio while still maintaining excellent performance characteristics. Supplied in six axial lead tubular case sizes, these capacitors are ideally suited for use in printed wiring boards and all applications requiring a high degree of packaging density.

Show

T322F476K035AT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Axial
Voltage Rating (DC)	35 V
Capacitance	47 µF
Equivalent Series Resistance (ESR)	800 mΩ
Capacitance Tolerance	±10 %
Part Family	T322
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	35 V
	Show
Size-Length	18.03 mm
Size-Width	640 µm
Size-Height	18.03 mm
Size-Diameter	7.60 mm
Dielectric Material	Tantalum
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	1
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8532210080
ECCN Code	EAR99
