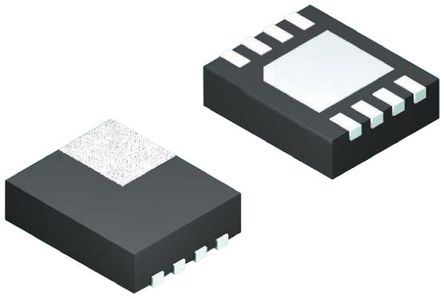

Image is for your reference only,please check specifications for details
- VSOP58436 - Vishay Semiconductor
-
Manufacturer:Vishay Semiconductor
-
ManyChip's Part#:MC116156637
-
Category:Interface IC, Interface Controller
-
Package:QFN-8
-
Datasheet:Datasheet 3D Model
-
Description:VISHAY VSOP58436 Signal Conditioner, 3.8kHz, 2.7V, 5.5V, QFN, 8Pins, -25℃
-
Stock Locations:
-
Availability:921 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.6
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The VSOP58436 is a 36kHz Preamplifier designed for use in an IR receiver application together with a photo pin diode. It is a sophisticated receiver concept that is very sensitive to data signals and compatible with the most common data formats for IR remote control. On the other hand it is immune to DC current caused by DC light sources such as tungsten bulbs. The disturbance signal of fluorescent lamps is suppressed, there are no unwanted pulses at the output.
- Narrow bandpassfilter for all common carrier frequencies
- High immunity against DC light
- Intelligent AGC to suppress disturbance from fluorescent lamps and CRTs
- Low power consumption
- Wide supply voltage range
- High immunity against ripple on the supply voltage
- Output active low
- IC manufactured in CMOS technology
VSOP58436 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | QFN-8 |
| Supply Voltage (DC) | 2.70V (min) |
| Output Current | 5 mA |
| Supply Current | 850 µA |
| Number of Positions | 8 Position |
| Power Dissipation | 10 mW |
| Bandwidth | 3.8 kHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 2 mm |
| Size-Height | 0.76 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
