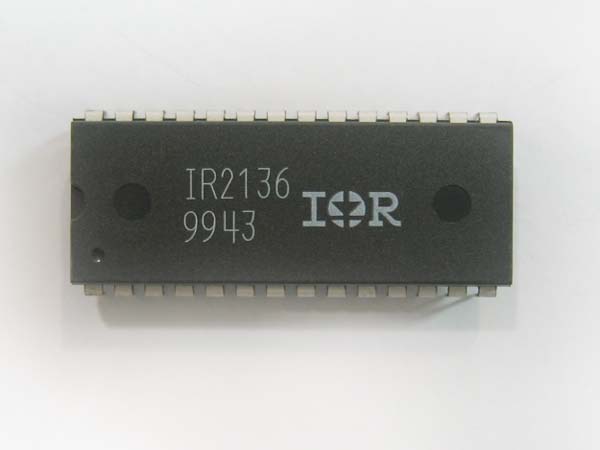

Image is for your reference only,please check specifications for details

IR2136 - International Rectifier
Manufacturer:
International Rectifier
ManyChip's Part#:
MC84101141
Category:
FET Driver
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
3 Phase Driver, Soft Turn-on, Inverting Input Separate High and Low Side Inputs, 200ns Deadtime in a 28Pin DIP package>
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 03/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The IR2136/IR21362/IR21363/IR21365/IR21366/IR21367/IR21368(J&S) are high votage, high speed power MOSFET and IGBT drivers with three independent high and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are compatible with CMOS or LSTTL outputs, down to 3.3V logic. A current trip function which terminates all six outputs can be derived from an external current sense resistor. An enable function is available to terminate all six outputs simultaneously.
Features
•Floating channel designed for bootstrap operation
Fully operational to +600V
Tolerant to negative transient voltage - dV/dt immune
•Gate drive supply range from 10 to 20V (IR2136/IR21368)
11.5 to 20V (IR21362) or 12 to 20V (IR21363/IR21365/IR21366/IR21367)
•Undervoltage lockout for all channels
•Over-current shutdown turns off all six drivers
•Independent 3 half-bridge drivers
•Matched propagation delay for all channels
•Cross-conduction prevention logic
•Lowside outputs out of phase with inputs. High side outputs out of phase (IR2136/IR21363/IR21365/
IR21366/IR21367/IR21368) or in phase (IR21362) with inputs.
•3.3V logic compatible
•Lower di/dt gate driver for better noise immunity
•Externally programmable delay for automatic fault clear
•Also available LEAD-FREE
