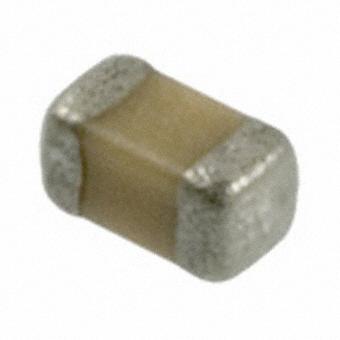

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 04026D105MAT2A is a surface-mount (SMT) Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The X5R dielectric is a Class II type dielectric suitable for higher capacitance applications. This dielectric offers high volumetric efficiency. This X5R capacitor is well suited for decoupling and filtering applications in mobile devices and other applications with size constraints.
Reflow/wave soldering method
General purpose dielectric for ceramic capacitor
EIA Class II dielectric
Temperature variation of capacitance is within ±15% from -55 to 85°C
Well suited for decoupling and filtering applications
Low parasitics
Excellent EMI filtering capabilities
Standard product

Show

04026D105MAT2A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1005
Case/Package	0402
Voltage Rating (DC)	6.30 V
Insulation Resistance	10 GΩ
Capacitance	1 µF
Capacitance Tolerance	±20 %
Dielectric Characteristic	X5R
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	6.3 V
	Show
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.56 mm
Material	X5R/-55℃~+85℃
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
