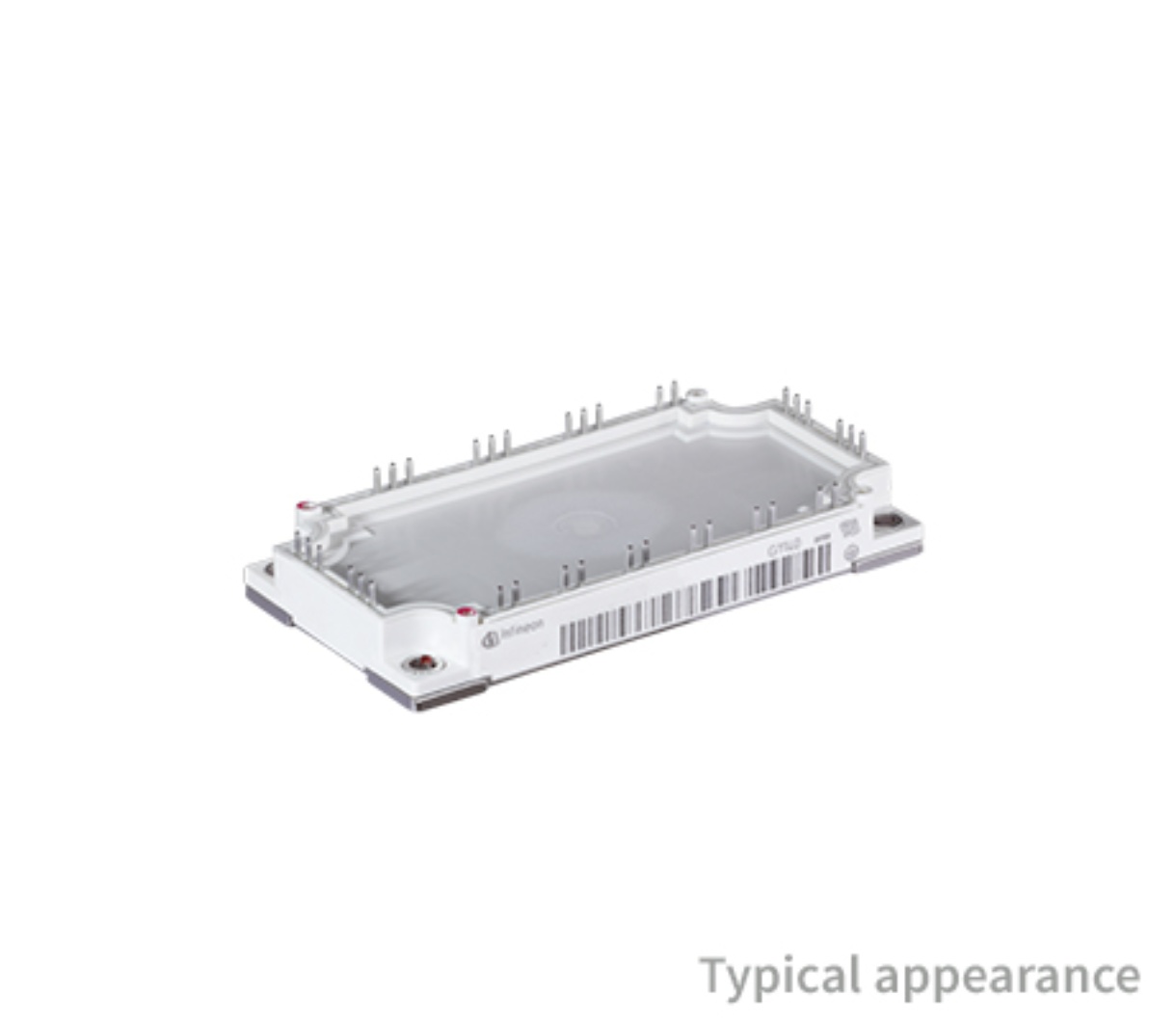

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* High power density * Established Econo module concept * Integrated temperature sensor available * Low stray inductance module design * RoHS-compliant modules

Show

FS100R12KE3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	35 Pin
Case/Package	ECONO3-4
Power Rating	480 W
Power Dissipation	480 W
Breakdown Voltage (Collector to Emitter)	1200 V
Input Capacitance (Cies)	7.1nF @25V
Input Power (Max)	480 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	480000 mW
	Show
Size-Length	122 mm
Size-Width	62 mm
Size-Height	17 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	Compliant with Exemption
Lead-Free Status
ECCN Code	EAR99
