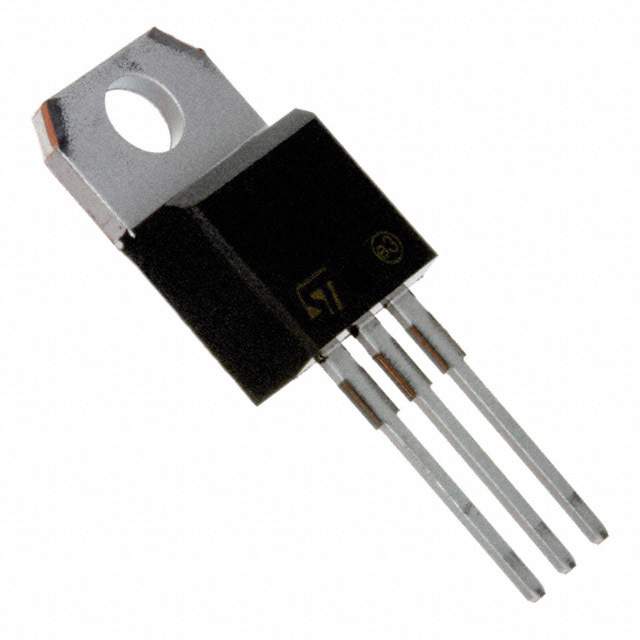

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

VNP10N06 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	60.0 V
Current Rating	10.0 A
Number of Outputs	1 Output
Drain to Source Resistance (on) (Rds)	150 mΩ
Power Dissipation	42.0 W
Breakdown Voltage (Drain to Source)	60.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Output Current (Max)	6 A
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
