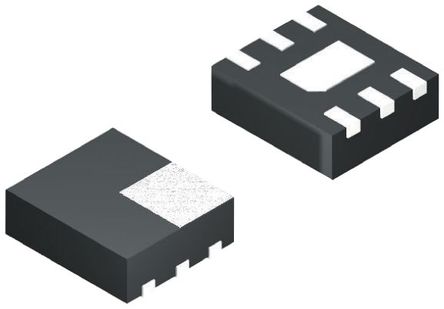

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Asynchronous Boost Converter * Internal Schottky Diode * Up to 500mW Output Power * Drives 3 to 5 LEDs in Series * 2.7V to 5.5V Input Voltage Range * Single-Wire Digital Control Interface to Set LED Brightness Levels * 32 Linear Steps * 1.2MHz Fixed Switching Frequency * Soft-Start Capability * Input Under-Voltage Lockout (UVLO) * Output Over-Voltage Protection (OVP) * Short-Circuit Detection * Thermal Shutdown (TSD) Protection * Low Profile 6-lead 2.0 x 2.0 x 0.55mm UMLP Package
FAN5341UMPX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | UMLP-6 |
| Frequency | 1.2 MHz |
| Number of Outputs | 1 Output |
| Output Voltage | 6.2V ~ 17.5V |
| Output Current | 25 mA |
| Number of Positions | 6 Position |
| Output Voltage (Max) | 17.5 V |
| Output Voltage (Min) | 6.2 V |
| Input Power (Max) | 500 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Input Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Height | 0.5 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
