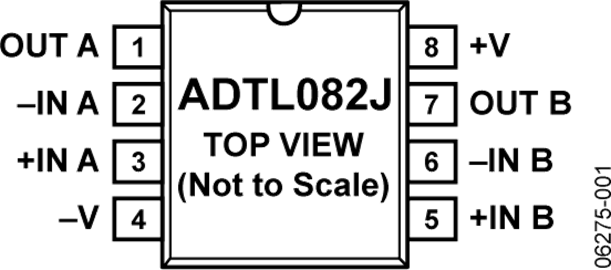

Image is for your reference only,please check specifications for details
- ADTL082ARZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1773708
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Dual, 2 Amplifier, 5MHz, 20V/µs, 8V to 36V, NSOIC, 8Pins
-
Stock Locations:
-
Availability:285 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.97
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADTL082ARZ is a dual JFET input Operational Amplifier provides industry-leading performance over TL08x devices. The ADTL082A is improved versions of TL08x A, I and Q grades. The ADTL08x family offers lower noise, offset voltage, offset drift over temperature and bias current over the TL08x. In addition, the ADLT08x family has better common-mode rejection and slew rates. This op amp is ideal for various applications, including process control and instrumentation equipment, active filtering, data conversion, buffering and power control and monitoring.
ADTL082ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Current | 1.2 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 80 dB |
| Bandwidth | 5 MHz |
| Slew Rate | 20.0 V/μs |
| Gain Bandwidth Product | 5 MHz |
| Input Impedance | 1.00 TΩ |
| Input Offset Voltage | 1.5 mV |
| Input Bias Current | 2 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 5 MHz |
| Minimum CMRR Range | 80 dB |
| Supply Voltage | 8V ~ 36V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
