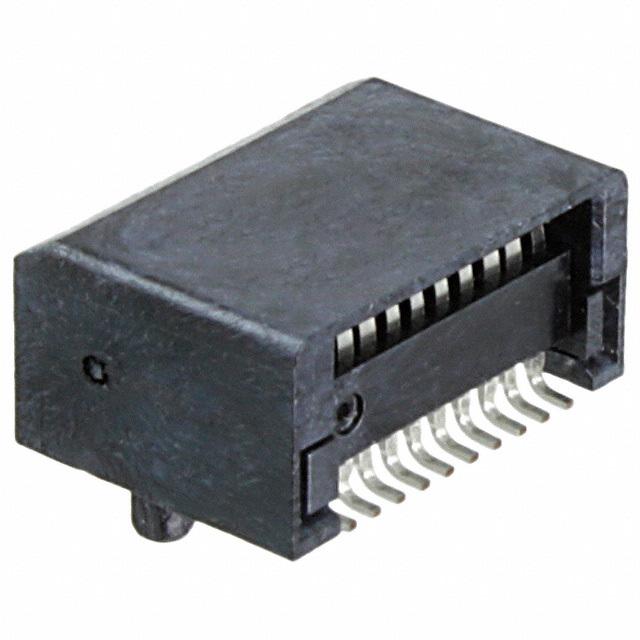

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Secure connections for high-speed networks is as simple as installing this zsfp+ 1703820001 telephone and telecom connector from Molex. This F connector"s 20 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a female type gender. It has a maximum voltage rating of 120 VDC|120VAC. It has a right angle body orientation. Its pitch is 0.8 mm. This device has a maximum current rating of 0.5 A/contact. It uses the solder termination method. This product is 5.35 mm tall. 1703820001 is housed in black polycarbonate. This part has an operating temperature of -40 to 85 °C.
1703820001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Number of Contacts | 20 Contact |
| Gender | Female |
| Contact Plating | Tin, Gold |
| Halogen Free Status | Low Halogen |
| Orientation | Right Angle |
| Number of Circuits | 20 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 20 Position |
| Number of Mating Cycles | 100 Cycle |
| Current Rating (Max) | 0.5A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 5.35 mm |
| Contact Material | Copper Alloy |
| Material | Brass |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
