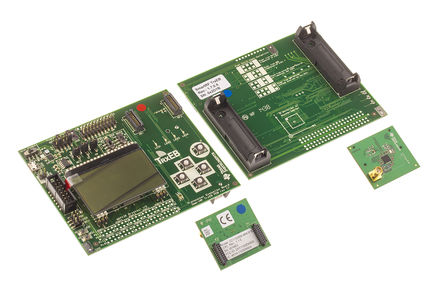

Image is for your reference only,please check specifications for details

CC1120DK - TI
Manufacturer:
TI
ManyChip's Part#:
MC14189840
Category:
Evaluation, Development Kit
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CC1120DK Development Kit, CC1120EM 868 / 915MHz, Hardware Performance Testing and Software Development
Stock Locations:
Availability:
3 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 355.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CC1120DK is a CC1120 development kit provides a complete hardware performance testing and software development platform for Sub 1GHz performance line devices. The development kit comes with a pre programmed packet error rate test. RF range and robustness can be tested with different RF settings, and power consumption can be measured easily. This kit supports 868MHz and 915MHz. Additional evaluation module Kits can be purchased separately to support other frequencies. The kit includes the SmartRF transceiver evaluation board (TrxEB), which has a number of useful features for development of prototype software, as well as USB connectivity making it possible to connect the board to a PC and control the radio from SmartRF Studio. In short, the TrxEB includes MSP430F5438 MCU, USB interface, 128 x 64 dot matrix LCD , three axis digital accelerometer and Ambient light sensor.
Provides a complete hardware performance testing and software development platform
SmartRF transceiver EB (TrxEB)
CC1120EM 868MHz/915MHz
MSP430 debug probe
The kit contains ESD sensitive components. Handle with care to prevent permanent damage. To minimize risk of injury, avoid touching components during operation if symbolized as hot

Show

CC1120DK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Frequency	868 MHz, 915 MHz
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
