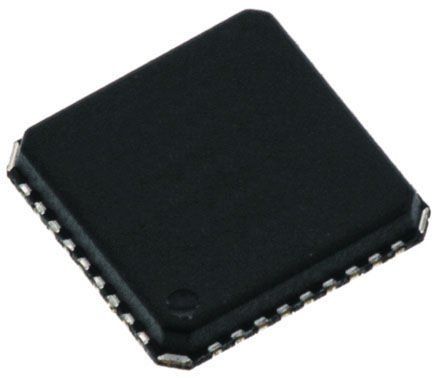

Image is for your reference only,please check specifications for details

CC2511F32RSP - TI
Manufacturer:
TI
ManyChip's Part#:
MC38538327
Category:
RF Module
Package:
QFN-36
Datasheet:
Datasheet 3D Model
Description:
2.4GHz Radio Transceiver, 8051 MCU, 16KB or 32KB Flash memory and full-speed USB interface 36-VQFN
Stock Locations:
Availability:
314 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.41

Updated at 29/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CC2511F32RSP is a 2.4GHz Radio Transceiver with 8051 MCU and full-speed USB interface. The true system-on-chip (SoC) designed for low power wireless applications. The CC2511Fx combines the excellent performance of the state-of-the-art RF transceiver CC2500 with an industry-standard enhanced 8051 MCU, up to 32kB of in-system programmable flash memory and 4kB of RAM and many other powerful features. The small 6x6 mm package makes it very suited for applications with size limitations. The CC2511Fx is highly suited for systems where very low power consumption is required. This is ensured by several advanced low-power operating modes. The CC2511Fx adds a full-speed USB controller to the feature set of the CC2510Fx. Interfacing to a PC using the USB interface is quick and easy and the high data rate (12Mbps) of the USB interface avoids the bottlenecks of RS-232 or low-speed USB interfaces.
High-performance RF transceiver based on the market-leading CC2500
Excellent receiver selectivity and blocking performance
High sensitivity
Programmable data rate up to 500kBaud
Programmable output power up to 1dBm for all supported frequencies
Digital RSSI/LQI support
0.3µA in PM3 (the operating mode with the lowest power consumption)
High performance and low power 8051 microcontroller core
I²S Interface
7 to 12 bit ADC with up to eight inputs
128-bit AES security coprocessor
Powerful DMA functionality
Two USARTs
16-bit Timer with DSM mode
Three 8-bit Timers
Hardware debug support
19 GPIO pins

Show

CC2511F32RSP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	QFN-36
Frequency	2.4 GHz
Supply Voltage (DC)	3.00V (min)
RAM Memory Size	4 KB
Data Rate	500 kbps
FLASH Memory Size	32768 B
Output Power	1 dBm
Standby Current	300 nA
Antenna Connection	Differential
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	6 mm
Size-Width	6 mm
Size-Height	0.82 mm
Operating Temperature	0℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
