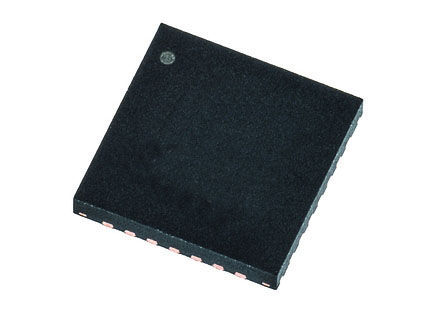

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CC2520RHDT is a second generation ZigBee/IEEE 802.15.4 RF Transceiver for the 2.4GHz unlicensed ISM band. This chip enables industrial grade applications by offering state-of-the-art selectivity/co-existence, excellent link budget, operation up to 125°C and low voltage operation. In addition, the CC2520 provides extensive hardware support for frame handling, data buffering, burst transmissions, data encryption, data authentication, clear channel assessment, link quality indication and frame timing information. These features reduce the load on the host controller. In a typical system, the transceiver will be used together with a microcontroller and a few additional passive components.
- AES-128 Security module
- <1µA Power down
- Clock output for single crystal systems
- Digital RSSI/LQI support
- Automatic clear channel assessment for CSMA/CA
- Automatic CRC
- 768 bytes RAM for flexible buffering and security processing
- Fully supported MAC security
- 4-wire SPI
- 6 Configurable IO pins
- Interrupt generator
- Frame filtering and processing engine
- Random number generator
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
CC2520RHDT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | QFN-28 |
| Frequency | 2.4 GHz |
| Supply Voltage (DC) | 1.80V (min) |
| Number of Channels | 2 Channel |
| Number of Positions | 28 Position |
| Clock Speed | 2.40 GHz |
| RAM Memory Size | 0.75 KB |
| Data Rate | 250 kbps |
| FLASH Memory Size | 0 B |
| Output Power | 5 dBm |
| Standby Current | 3.00 µA |
| Antenna Connection | Differential |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.8V ~ 3.8V |
| Supply Voltage (Max) | 3.8 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | 5A992.c |
| HK STC License | NLR |
