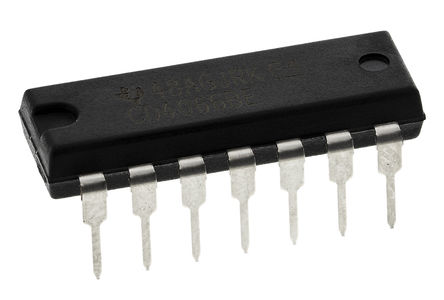

Image is for your reference only,please check specifications for details
- CD4066BE - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC34143
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:DIP-14
-
Datasheet:Datasheet 3D Model
-
Description:Analog Switch, Quad Channel, SPST, 4Channels, 240Ω, 3V to 18V, DIP, 14Pins
-
Stock Locations:
-
Availability:1,898 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.3
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CD4066BE is a CMOS quad bilateral switch in 14 pin DIP package. This switch is intended for transmission or multiplexing of analogue or digital signals. It is pin to pin compatible with CD4016B but exhibits much lower on state resistance. The on state resistance is relatively constant over full input signal range. The CD4066B consists of four bilateral switches with independent controls. Both P and N device in given switch are biased on or off simultaneously by control signal. The advantages over single channel switches include peak input signal voltage swings equal to full supply voltage and more constant on state impedance over input signal range.
- 15V digital or ±7.5V peak to peak switching
- 125ohm typical on state resistance for 15V operation
- Switch on state resistance matched to within 5 over 15V signal input range
- On state resistance flat over full peak to peak signal range
- Meets all requirements of JEDEC tentative standard JESD 13B
- 5V, 10V and 15V parametric ratings
- Matched control input to signal output capacitance reduces output signal transients
- Supply voltage range from 3V to 18V
- Operating temperature range -55°C to 125°C
CD4066BE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Supply Voltage (DC) | 15.0 V |
| Operating Voltage | 3V ~ 18V |
| Number of Outputs | 4 Output |
| Contacts Type | SPST |
| Number of Channels | 4 Channel |
| Number of Positions | 14 Position |
| Drain to Source Resistance (on) (Rds) | 470 Ω |
| Number of Bits | 4 Bit |
| Polarity | Non-Inverting |
| Voltage Nodes | 5.00 V, 10.0 V, 15.0 V |
| Quiescent Current | 20.0 nA |
| Number of Gates | 4 Gate |
| Input Capacitance | 8.00 pF |
| Bandwidth | 40 MHz |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 19.3 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
| ECCN Code | EAR99 |
