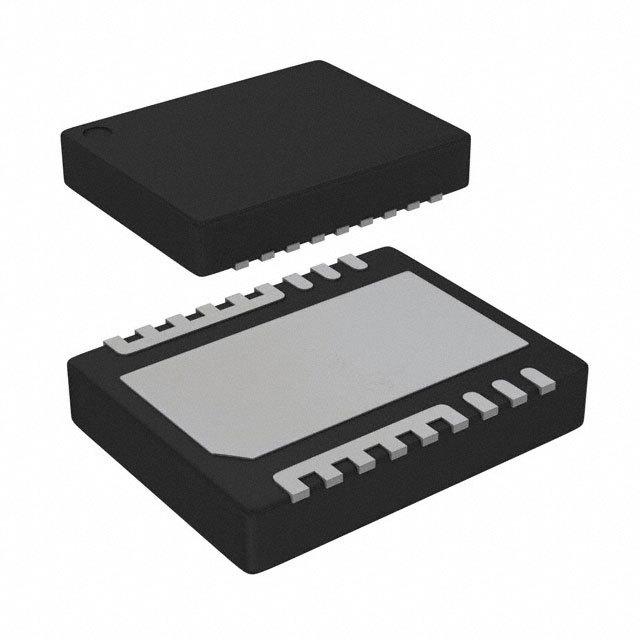

Image is for your reference only,please check specifications for details

Updated at 12/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CSD97394Q4MT is a synchronous buck NexFET™ Power Stage with highly-optimized design for use in a high-power/-density synchronous buck converter. This product integrates the driver IC and NexFET technology to complete the power stage switching function. The driver IC has a built-in selectable diode emulation function that enables DCM operation to improve light load efficiency. In addition, the driver IC supports ULQ mode that enables connected standby for Windows® 8. With the PWM input in tri-state, quiescent current is reduced to 130µA, with immediate response. When SKIP# is held at tri-state, the current is reduced to 8µA (typically 20µs is required to resume switching). In addition, the PCB footprint is optimized to help reduce design time and simplify the completion of the overall system design.
90% System efficiency at 15A
High frequency operation (up to 2MHz)
System optimized PCB footprint
Ultralow quiescent (ULQ) current mode
3.3, 5V PWM Signal compatible
Diode emulation mode with FCCM
Input voltages up to 24V
Tri-state PWM input
Integrated Bootsrap diode
Shoot through protection

Show

CSD97394Q4MT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON-Clip-8
Supply Voltage (DC)	5.50 V
Number of Outputs	1 Output
Number of Positions	8 Position
Power Dissipation	8 W
Number of Regulated Outputs	1 Output
Fall Time (Max)	60 ns
Fall Time (Max)	60 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	8000 mW
Supply Voltage	5.5 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
