Description

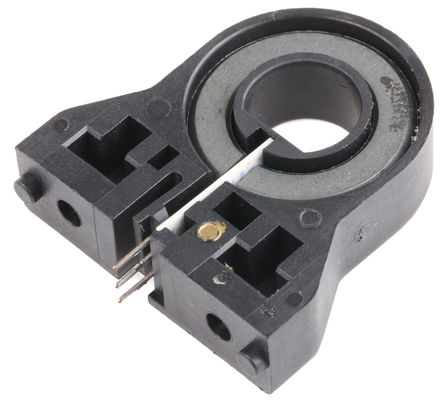

The CSLA1CD is a linear open-loop Current Sensor that provides output voltage proportional to measured current without using feedback control. The sensing element is assembled in a printed circuit board mountable housing.
Linear Output
AC or DC Current Sensing
Through-hole Design
Fast Response Time
Output Voltage Isolation from Input
Minimum Energy Dissipation
Maximum Current Limited only by Conductor Size
Adjustable Performance and Built-in Temperature Compensation Assures Reliable Operation
Accurate, Low Cost Sensing
PBT Polyester Housing

Show

CSLA1CD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Module, Single Pass Through
Current Rating	57 A
Supply Current	19 mA
Number of Channels	1 Channel
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	8VDC ~ 16VDC
Input Voltage	8V ~ 16V
	Show
Size-Length	34.29 mm
Size-Width	34.3 mm
Size-Height	35.6 mm
Lead Length	0.06 in
Operating Temperature	-25℃ ~ 85℃
Housing Material	Polyester
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	9030330040
ECCN Code	EAR99
