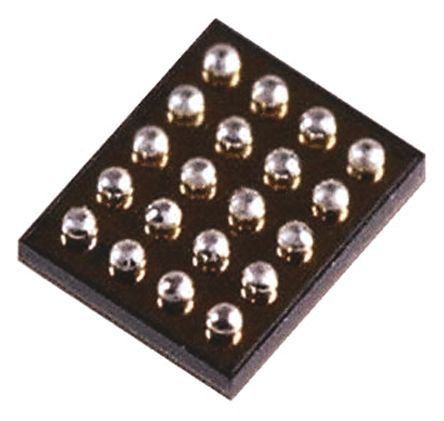

Image is for your reference only,please check specifications for details
- FAN5405UCX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC85502936
-
Category:Battery Management IC
-
Package:WLCSP-20
-
Datasheet:Datasheet 3D Model
-
Description:Battery Charger Li-Ion/Li-Pol 1250mA 3.5V to 4.4V 20Pin WLCSP T/R
-
Stock Locations:
-
Availability:278 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.79
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The FAN5400 family (FAN540X) combines a highly integrated switch-mode charger, to minimize single-cell Lithium-ion (Li-ion) charging time from a USB power source, and a boost regulator to power a USB peripheral from the battery.
- The charging parameters and operating modes are programmable through an I2C Interface that operates up to 3.4Mbps. The charger and boost regulator circuits switch at 3MHz to minimize the size of external passive components.
- The FAN540X provides battery charging in three phases: conditioning, constant current, and constant voltage.
- Features
- ■ Fully Integrated, High-Efficiency Charger for Single-Cell Li-Ion and Li-Polymer Battery Packs
- ■ Faster Charging than Linear
- ■ Charge Voltage Accuracy: ±0.5% at 25°C
- ±1% from 0 to 125°C
- ■5% Input Current Regulation Accuracy
- ■5% Charge Current Regulation Accuracy
- ■ 20V Absolute Maximum Input Voltage
- ■ 6V Maximum Input Operating Voltage
- ■ 1.25A Maximum Charge Rate
- ■ Programmable through High-Speed I2C Interface (3.4Mb/s) with Fast Mode Plus Compatibility
- – Input Current
- – Fast-Charge / Termination Current
- – Charger Voltage
- – Termination Enable
- ■ 3MHz Synchronous Buck PWM Controller with Wide Duty Cycle Range
- ■ Small Footprint 1H External Inductor
- ■ Safety Timer with Reset Control
- ■ 1.8V Regulated Output from VBUS for Auxiliary Circuits
- ■ Weak Input Sources Accommodated by Reducing Charging Current to Maintain Minimum VBUS Voltage
- ■ Low Reverse Leakage to Prevent Battery Drain to VBUS
- ■ 5V, 300mA Boost Mode for USB OTG for 2.5 to 4.5V Battery Input
- Applications
- ■ Cell Phones, Smart Phones, PDAs
- ■ Tablet, Portable Media Players
- ■ Gaming Device, Digital Cameras
FAN5405UCX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | WLCSP-20 |
| Output Voltage | 1.8 V |
| Output Current | 1.25 A |
| Output Voltage (Max) | 4.4 V |
| Output Voltage (Min) | 3.5 V |
| Output Current (Max) | 1250 mA |
| Output Current (Min) | 550 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Show | |
| Size-Length | 1.96 mm |
| Size-Width | 1.87 mm |
| Size-Height | 0.378 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
