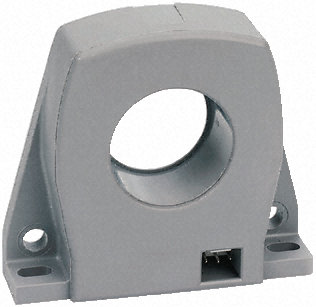

Image is for your reference only,please check specifications for details

CSNS300M - Honeywell
Manufacturer:
Honeywell
ManyChip's Part#:
MC43528746
Category:
Current Sensor
Package:
Module, Single Pass Through
Datasheet:
Datasheet 3D Model
Description:
HONEYWELL CSNS300M Current Sensor, CSN Series, Solid State, -600A to 600A, Closed Loop Output, 12VDC to 18VDC
Stock Locations:
Availability:
285 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7081.08

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CSNS300M is a closed loop linear Current Sensor is based on the principles of the magnetoresistive or hall effects and the null balance or zero magnetic flux method (feedback system). The magnetic flux in the sensor core is constantly controlled at zero. The amount of current required to balance zero flux is the measure of the primary current flowing through the conductor, multiplied by the ratio of the primary to secondary windings. This closed loop current is the output from the device and presents an image of the primary current reduced by the number of secondary turns at any time. This current can be expressed as a voltage by passing it through a resistor.
Current sensing up to 1275A (depending on product listing)
Measures AC, DC and impulse currents
Rapid response
High overload capability
High level of electrical isolation between primary and secondary circuits
Industrial operating temperature range
Small size and weight
31R coil resistance
2000 coil turns
Glass-filled PBT (UL94-V0) housing
Panel mounting
Molex (3-way) pinout style
Do not use this product as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
