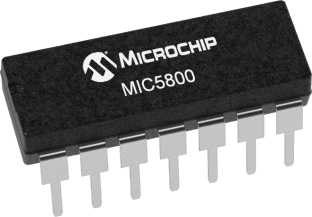

Image is for your reference only,please check specifications for details

MIC5800YN - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC6082853
Category:
Latche IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MIC5800YN Latched Driver, 500mA, 4Outputs, 5V, 15V, DIP, 14Pins
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.08

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC5800YN is a 4-bit parallel-input Latched Driver with high-voltage, high-current integrated circuits comprised of CMOS data latches, a bi-polar Darlington transistor driver for each latch and CMOS control circuitry for the common CLEAR, STROBE and OUTPUT ENABLE functions. The bi-polar/MOS combination provides an extremely low-power latch with maximum interface flexibility. Data input rates are greatly improved in these devices. With a 5V supply, they will typically operate at better than 5MHz. With a 12V supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS and NMOS circuits. TTL or DTL circuits may require the use of appropriate pull-up resistors. The bi-polar outputs is suitable for use with relays, solenoids, stepping motors, LED or incandescent displays and other high-power loads. Both units have open-collector outputs and integral diodes for inductive load transient suppression.
High voltage, current sink outputs
Output transient protection
Internal pull-down resistors
Low-power CMOS latches

Show

MIC5800YN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Number of Outputs	4 Output
Output Voltage	50.0 V
Output Current	500 mA
Supply Current	1 mA
Number of Positions	14 Position
Number of Bits	4 Bit
Polarity	NPN
Output Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	5 V
	Show
Size-Length	19.05 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
