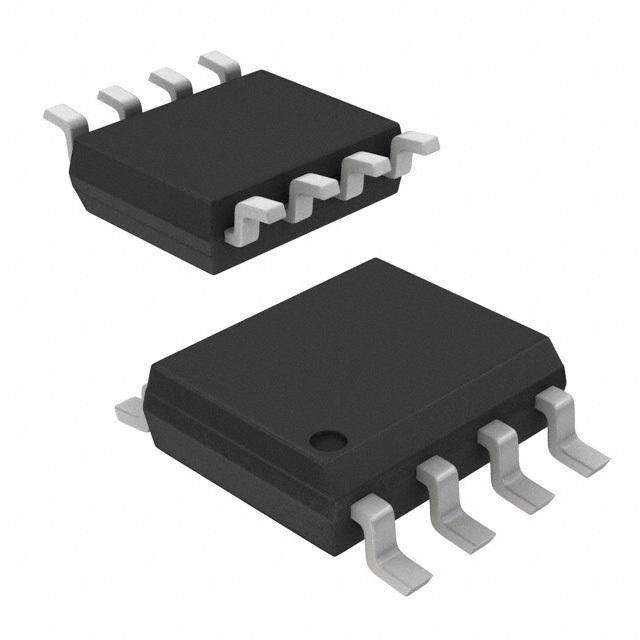

Image is for your reference only,please check specifications for details
Updated at 27/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Description
- The AO4832 uses advanced trench technology to provide excellent RDS(ON) with low gate charge. This device is suitable for high side switch in SMPS and general purpose applications.
- Product Summary
- VDS 30V
- ID (at VGS=10V) 10A
- RDS(ON) (at VGS=10V) < 13mΩ
- RDS(ON) (at VGS=4.5V) < 17.5mΩ
- 100% UIS Tested
- 100% Rg Tested
AO4832 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Power Rating | 1.3 W |
| Polarity | N-CH |
| Power Dissipation | 2 W |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 10A |
| Rise Time | 9 ns |
| Input Capacitance (Ciss) | 910pF @15V(Vds) |
| Input Power (Max) | 2 W |
| Fall Time | 6 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2 W |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
