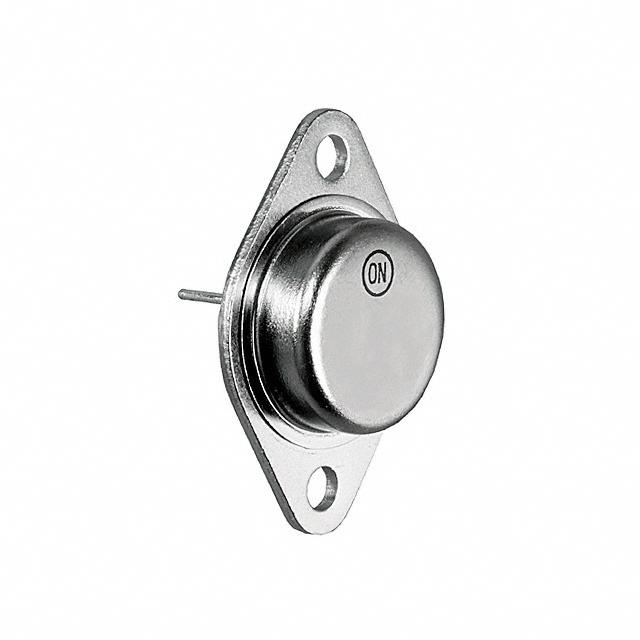

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DARLINGTON 12 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS 80−100 VOLTS 150 WATTS
. . . designed for general−purpose amplifier and low frequency switching applications.
• High DC Current Gain —
hFE = 3500 (Typ) @ IC = 5.0 Adc
• Collector−Emitter Sustaining Voltage — @ 100 mA
VCEO(sus) = 80 Vdc (Min) — 2N6058
100 Vdc (Min) — 2N6052, 2N6059
• Monolithic Construction with Built−In Base−Emitter Shunt Resistors
• These devices are available in Pb−free package(s). Specifications herein apply to both standard and Pb−free devices. Please see our website at www.onsemi.com for specific Pb−free orderable part numbers, or contact your local ON Semiconductor sales office or representative.

Show

2N6052 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-204-2
Voltage Rating (DC)	-100 V
Current Rating	-12.0 A
Polarity	PNP
Power Dissipation	150 W
Breakdown Voltage (Collector to Emitter)	100 V
Continuous Collector Current	12A
hFE Min	750 @6A, 3V
hFE Max	18000
Input Power (Max)	150 W
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	150000 mW
	Show
Size-Length	39.37 mm
Size-Width	26.67 mm
Size-Height	8.51 mm
Operating Temperature	-65℃ ~ 200℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tray
Minimum Packing Quantity	100
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
