Description
- **The Power to Solve Problems Quickly
- **The MSO2000 and DPO2000 Series digital phosphor oscilloscopes (DPOs) deliver the performance and tools you need to visualize your signals and find answers quickly. The DPO2000 Series are the first oscilloscopes to provide 1 M points of usable record length on all channels, serial trigger and decode analysis options, a variable low-pass filter that also allows you to see signal details to the oscilloscope"s full bandwidth and all in a compact form factor. The MSO2000 Series adds 16 integrated digital channels, enabling you to visualize and time correlate analog and digital signals on a single instrument. This integration extends triggering functionality across all 20 channels which is ideal for debugging mixed analog and digital designs.**
- Key Performance Specifications
- **
- * 100 MHz and 200 MHz Bandwidth Models**
- **
- * 2- or 4-Analog Channels**
- **
- * 16 Digital Channels**
- **
- * Sample Rates Up to 1 GS/s on All Channels**
- **
- * 1 Mega Sample Record Length on All Channels**
- **
- * 5,000 wfm/s Maximum Waveform Capture Rate**
- **
- * Suite of Advanced Triggers**
- Serial Bus Trigger and Decode
- **
- * I2C, SPI, CAN, LIN, and RS-232/422/485/UART Serial Triggering, Decode, and Analysis Options Available**
- Ease of Use Features
- **
- * Wave Inspector® Navigation and Search Provides Unprecedented Efficiency in Waveform Analysis**
- **
- * FilterVu™ Variable Low-Pass Filter Allows for Removal of Unwanted Signal Noise While Still Capturing High-Frequency Events**
- **
- * 7 inch (180 mm) Bright, Widescreen, TFT-LCD Color Display**
- **
- * USB 2.0 on Front Panel for Quick and Easy Data Storage**
- **
- * USB 2.0 Device Port on Rear Panel for Direct PC Control of Oscilloscope Using USBTMC or Direct Printing to Any PictBridge® Compatible Printer**
- **
- * Plug"n"Play PC Connectivity and Analysis Software Solutions**
- **
- * TekVPI® Probe Interface Supports Active, Differential and Current Probes for Automatic Scaling and Units**
- **
- * Small Footprint and Light Weight — Only 5.3 inch (134 mm) Deep and 7 lb 14 Oz (3.6 kg)**
- Mixed Signal Design and Analysis (MSO2000 Series)
- **
- * Ability to Time Correlate Up to 4-Analog and 16-Digital Channels**
- **
- * Parallel Bus Trigger and Analysis**
- **
- * Multichannel Setup and Hold Triggering**
- **
- * Next-Generation Digital Waveform Display

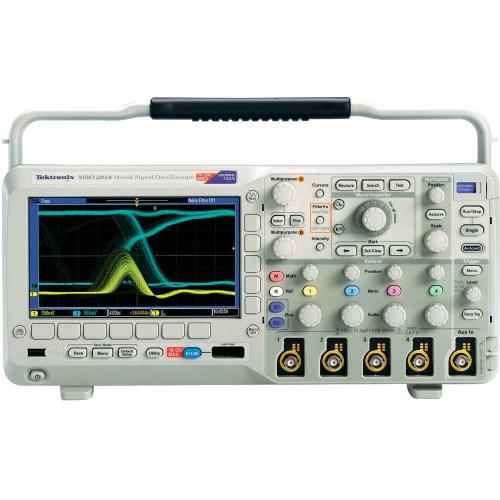

MSO2024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Input Voltage (DC) | 450 V |
| Number of Channels | 4 + 16 Channel |
| Sample Rate | 1.00 GHz |
| Rise Time | 2.10 ns |
| Bandwidth | 200 MHz |
| Input Impedance | 1 MΩ |
| Supply Voltage (Max) | 240 VAC |
| Supply Voltage (Min) | 100 VAC |
| Input Voltage | 300 V |
| Show | |
| Size-Height | 180 mm |
| Weight | 3.58 kg |
| RoHS | Non-Compliant |
| REACH SVHC Compliance Edition | 2014/06/16 |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
