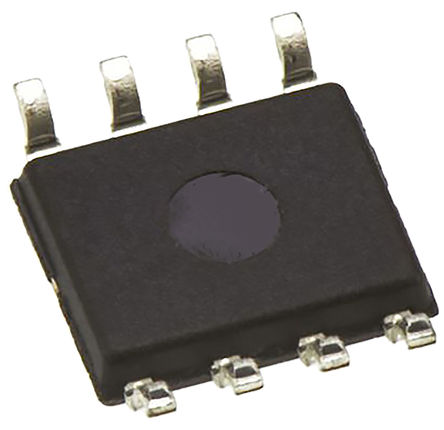

- CY22381FXI - Cypress Semiconductor
-
Manufacturer:Cypress Semiconductor
-
ManyChip's Part#:MC24203903
-
Category:Clock Generator IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Clock Generator 1MHz to 150MHz Input 166MHz Output 8Pin SOIC
-
Stock Locations:
-
Availability:293 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.7
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Functional Description
- The CY22381 is the next-generation programmable Flash programmable clock for use in networking, telecommunication, datacom, and other general-purpose applications. The CY22381 offers up to three configurable outputs in a 8-pin SOIC, running off a 3.3 V power supply. The on-chip reference oscillator is designed to run off an 8–30-MHz crystal, or a 1–166-MHz external clock signal. The CY22381 has a three PLLs driving 3 programmable output clocks. The output clocks are derived from the PLL or the reference frequency (REF). Output post dividers are available for either. The CY223811 is the CY22381 with NiPdAu lead finish.
- Features
- ■ Three integrated phase-locked loops
- ■ Ultra-wide divide counters (eight-bit Q, eleven-bit P, and seven-bit post divide)
- ■ Improved linear crystal load capacitors
- ■ Flash programmability
- ■ Field programmability
- ■ Low-jitter, high-accuracy outputs
- ■ Power-management options (Shutdown, OE, Suspend)
- ■ Configurable crystal drive strength
- ■ Frequency select option through external LVTTL Input
- ■ 3.3 V operation
- ■ 8-pin small outline integrated circuit (SOIC) package (CY22381)
- ■ 8-pin SOIC package with NiPdAu lead finish (CY223811)
- ■ CyClocks RT™ support
CY22381FXI Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Frequency | 166 MHz |
| Number of Outputs | 3 Output |
| Supply Current | 70 mA |
| Number of Circuits | 1 Circuit |
| Number of Positions | 8 Position |
| Power Dissipation | 0.25 W |
| Duty Cycle | 50 % |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Supply Voltage | 3.135V ~ 3.465V |
| Supply Voltage (Max) | 3.465 V |
| Supply Voltage (Min) | 3.135 V |
| Show | |
| Size-Length | 4.97 mm |
| Size-Width | 3.98 mm |
| Size-Height | 1.47 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
