D8025L - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC109963457
Category:
Rectifier Diode
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:

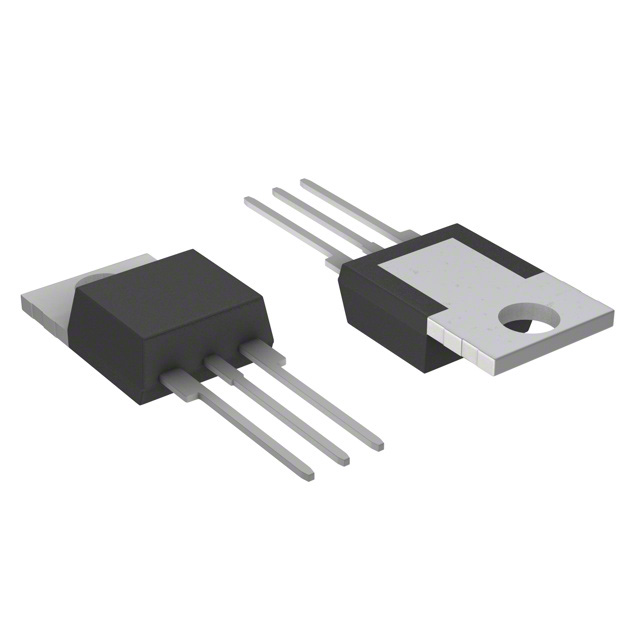

LITTELFUSE D8025L Standard Power Diode, 800V, 15.9A, Single, 1.6V, 4µs, 350A
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.37

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Littelfuse manufactures 15 A to 25 A rectifiers with voltages rated from 200 V to 1000 V. Due to the electrically-isolated TO-220 package, these rectifiers may be used in common anode or common cathode circuits using only one part type, thereby simplifying stock requirements.

Show

D8025L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	800 V
Current Rating	25.0 A
Output Current	≤25.0 A
Forward Voltage	1.6 V
Polarity	Standard
Thermal Resistance	2.5℃/W (RθJC)
Reverse recovery time	4 µs
Forward Current	15.9 A
Max Forward Surge Current (Ifsm)	350 A
Maximum Forward Voltage (Max)	1.6 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	125 ℃
	Show
Size-Length	10.67 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Discontinued at Digi-Key
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
