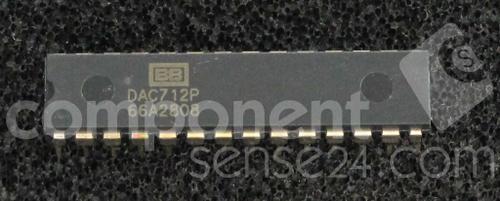

- DAC712P - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC59996453
-
Category:Digital to Analog, DAC IC
-
Package:PDIP-28
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter 16Bit Digital-to-Converter With 16Bit Bus Interface DAC 1CH R-2R 16Bit 28Pin PDIP Tube
-
Stock Locations:
-
Availability:2,371 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 36.87
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The DAC712 is a complete 16-bit resolution digital-to-analog (D/A) converter with 16 bits of
- monotonicity over temperature.
- The DAC712 has a precision +10V temperature-compensated voltage reference, ±10V
- output amplifier, and 16-bit port bus interface.
- The digital interface is fast, 60ns minimum write pulse width, double-buffered, and has a CLEAR function that resets the analog output to bipolar zero.
- GAIN and OFFSET adjustment inputs are arranged so that they can be easily trimmed by external D/A converters as well as by potentiometers.
- FEATURES
- • HIGH-SPEED, 16-BIT PARALLEL DOUBLE-BUFFERED INTERFACE
- • VOLTAGE OUTPUT: ±10V
- • 13-, 14-, AND 15-BIT LINEARITY GRADES
- • 16-BIT MONOTONIC OVER TEMPERATURE(L GRADE)
- • POWER DISSIPATION: 600mW max
- • GAIN AND OFFSET ADJUST: Convenient for Auto-Cal D/A Converters
- • 28-LEAD DIP AND SOIC PACKAGES
DAC712P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | PDIP-28 |
| Supply Voltage (DC) | -15.0 V (min) |
| Operating Voltage | 11.4V ~ 16.5V |
| Number of Outputs | 1 Output |
| Supply Current | 22.0 mA |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 600 mW |
| Sample Rate | 100 ksps |
| Power Consumption | 525 mW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Show | |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
