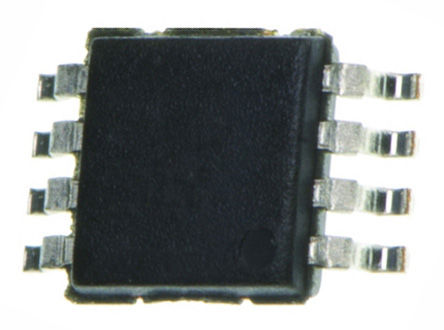

Image is for your reference only,please check specifications for details
- DAC8811IBDGKT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC19465796
-
Category:Digital to Analog, DAC IC
-
Package:VSSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter, 16Bit, 2MSPS, Serial, 2.7V to 5.5V, VSSOP, 8Pins
-
Stock Locations:
-
Availability:2,000 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 245
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DAC8811IBDGKT is a 16-bit serial-input multiplying Digital-to-analog Converter (DAC) designed to operate from a single 2.7 to 5.5V supply. The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external I-to-V precision amplifier. A serial data interface offers high-speed, 3-wire microcontroller-compatible inputs using data-in (SDI), clock (CLK) and chip-select (CS). On power-up, the DAC register is filled with zeroes and the DAC output is at zero scale.
- 4-quadrant multiplying reference-input
- Reference dynamics -105 THD
- Green product and no Sb/Br
DAC8811IBDGKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Number of Outputs | 1 Output |
| Supply Current | 5.00 µA |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Number of Bits | 16 Bit |
| Sample Rate | 2 Msps |
| Power Consumption | 25.0 µW |
| Thermal Shutdown | No |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage | 2.7V ~ 5.5V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
