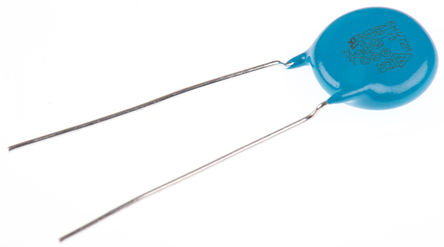

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DE2E3KH472MA3B is a radial leaded safety standard certified Ceramic Capacitor with vertical crimp long lead, coated with flame-retardant epoxy resin (conforming to UL94V-0 standard). Class X1/Y2 capacitors which are certified by UL/CSA/VDE/BSI/SEMKO/DEMKO/FIMKO/NEMKO/ESTI/NSW. Ideal for use as X/Y capacitors for AC line filter and primary-secondary coupling on switching power supplies and AC adapters.
2600VAC Dielectric strength
Do not use these products in any automotive power train or safety equipment including battery chargers for electric vehicles and plug-in hybrid.

Show

DE2E3KH472MA3B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Disc
Pin Pitch	7.5 mm
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Operating Voltage	250 VAC
Capacitance	4700 pF
Capacitance Tolerance	±20 %
Dielectric Characteristic	E
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	250 VAC
	Show
Size-Length	13 mm
Size-Width	13 mm
Size-Height	7 mm
Size-Diameter	13.0 mm
Lead Length	25.0 mm
Size-Thickness	7 mm
Material	E
Dielectric Material	Ceramic
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Obsolete
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
