Description

With the ever-pressing need to improve power supply efficiency, improve surge rating, improve reliability, and reduce size, the DFxS2 family sets a new standard in performance.The new design offers an improved surge rating of 85 A. This is especially important when striving to improve reliability and increase efficiency. High efficiency designs strive to reduce circuit resistance, which, unfortunately can result in increased inrush surge. As such higher surge current ratings can be required to maintain or improve reliability.The design also offers improved efficiency by achieving a 2 A VF of 1.1 V maximum at 25°C. This lower VF also supports cooler and more efficient operation.Finally, the DFxS2 achieves all this in a SDIP surface mount form factor, reducing board space and volumetric requirements vs. competitive devices.
Features
---
|
Maximum Surge Rating: IFSM = 85 A, I2t = 30 A2Sec
Optimized VF: Typical 0.93 V at 2 A, 25°C
DF10S Socket Compatible
Glass Passivated Junctions
Space Saving
Lead Free in Comply with EU RoHS 2002/95/EU Directives
Green Molding Compound: IEC61249 Halogen Free
Qualified with IR Reflow and Wave Soldering

Show

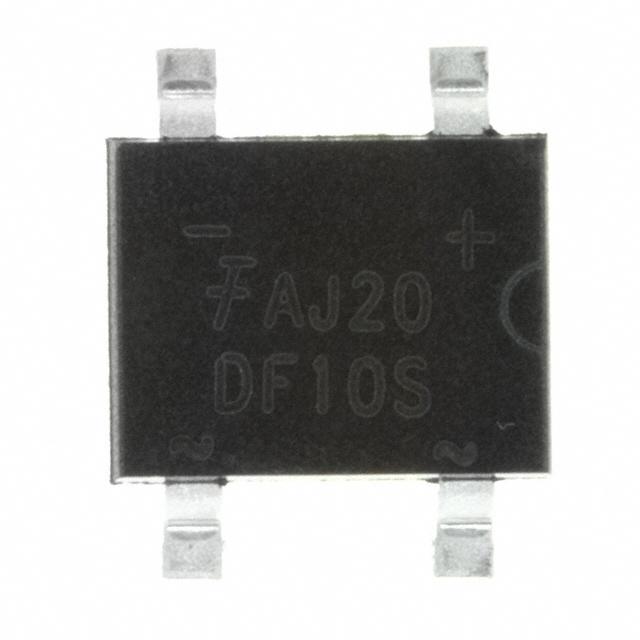

DF10S2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SDIP-4
Number of Positions	4 Position
Forward Voltage	1.1 V
Thermal Resistance	100 ℃/W
Forward Current	1.5 A
Max Forward Surge Current (Ifsm)	85 A
Maximum Forward Voltage (Max)	1.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
ECCN Code	EAR99
