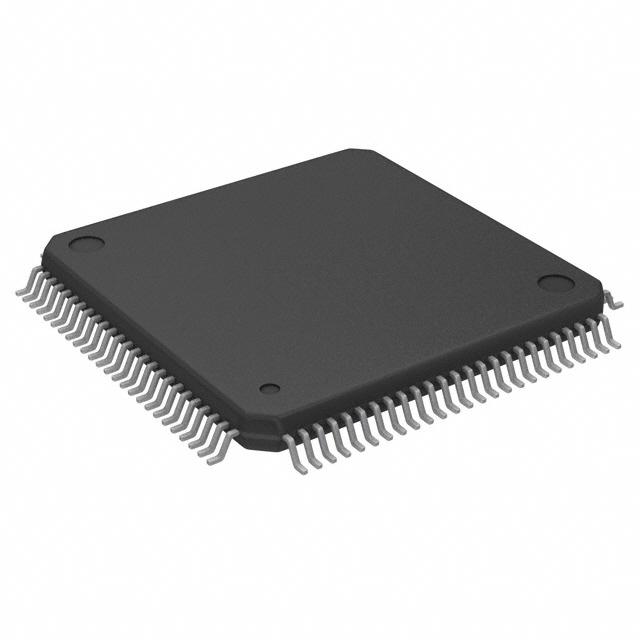

Image is for your reference only,please check specifications for details
- DF3048BF25V - Renesas Electronics
-
Manufacturer:Renesas Electronics
-
ManyChip's Part#:MC95184130
-
Category:Microcontroller, MCU IC
-
Package:QFP-100
-
Datasheet:Datasheet 3D Model
-
Description:MCU 16Bit H8/300H CISC 5V 100Pin PQFP
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- H8/300H H8® H8/300H Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 100-QFP (14x14)
DF3048BF25V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | QFP-100 |
| Frequency | 25 MHz |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Number of Positions | 100 Position |
| Clock Speed | 25.0 MHz, 8.00 MHz (max) |
| RAM Memory Size | 4K x 8 |
| Number of Bits | 16 Bit |
| Number of I/O Pins | 78 IO |
| Access Time | 25.0 µs |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 70 Input IO |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Operating Temperature | -20℃ ~ 75℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
