DM330012 - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC7117504
Category:
Microprocessor Primary Platform
Package:
Kit
Datasheet:
Datasheet 3D Model
Description:
USB Starter Kit Provides A Low Cost Method For The Development And Testing Of USB OTG
Stock Locations:
Availability:
289 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 138.66

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

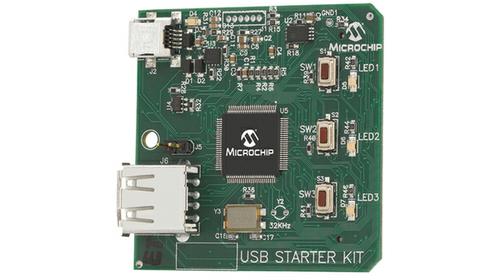

The DM330012 is a dsPIC33E USB starter kit provides a low cost method for the development and testing of USB Host and device applications on the dsPIC33E DSC family. The starter kit comes preloaded with demonstration software for the user to explore the new features of the dsPIC33E DSC family. It is also expandable through a modular expansion interface, which allows the user to extend its functionality. The board contains an on board programming/debugger, standard A USB and micro A/B connectors, three user programmable LEDs, three push button switches and an expansion header compatible with the multimedia expansion board (DM320005) and I/O expansion board (DM320002). The starter kit comes preloaded with basic communication device Class (CDC) demonstration software.
Green power indicator LED
8MHz crystal for precision microcontroller clocking
USB type A receptacle for dsPIC33E/PIC24E USB host based applications
Regulated 3.3V power supply for powering the starter kit via USB or an expansion board
DsPIC33EP512MU810 16bit DSC device
USB connectivity for on board debugger communications
Three push button switches (SW1, SW2, SW3) for user defined inputs
Three user defined indicator LEDs (LED1, LED2, LED3)

Show

DM330012 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	Kit
Number of Bits	16 Bit
Core Architecture	dsPIC
Core Sub-Architecture	dsPIC33
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	5A002.a.1
