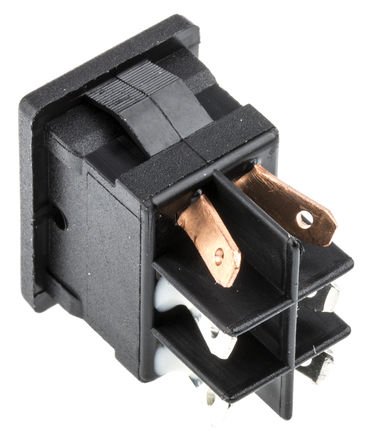

Image is for your reference only,please check specifications for details

DM64J72S205Q6 - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC19129896
Category:
Rocker Switch, Paddle Switch, Switch Rocker
Package:
125
Datasheet:
Datasheet 3D Model
Description:
ROCKER; DPST; Positions:2; OFF-ON; 5A/250VAC; 10A/30VDC; black; LED
Stock Locations:
Availability:
276 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.83

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**DM Series LED Rocker Switch**
These miniature illuminated power rocker switches are designed for use in a wide variety of applications including instrumentation, industrial and office machines.

Show

DM64J72S205Q6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Case/Package	125
Voltage Rating (AC)	125 V
Current Rating	10A (AC)
Insulation Resistance	1 GΩ
Number of Rows	2 Row
Contacts Type	DPST
Contact Current Rating	5A @250VAC
Current Rating (Max)	10A @125VAC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating (AC Max)	250 V
	Show
Size-Length	20.83 mm
Size-Height	23.64 mm
Housing Color	Black
Color	Black
Contact Material	Coin Silver
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509040
ECCN Code	EAR99
