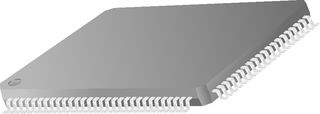

Image is for your reference only,please check specifications for details
- DM9000EP - Davicom Semiconductor
-
Manufacturer:Davicom Semiconductor
-
ManyChip's Part#:MC2308726
-
Category:Ethernet Controller IC, Ethernet Controller
-
Package:LQFP
-
Datasheet:Datasheet 3D Model
-
Description:Ethernet Controller, 100Mbps, IEEE 802.3u, 3.135V, 3.465V, LQFP, 100Pins
-
Stock Locations:
-
Availability:1,268 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.49
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DM9000EP is a fully integrated and cost-effective single chip fast Ethernet MAC Controller IC with a general processor interface, a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance process that support 3.3V with 5V tolerance. It also provides a MII interface to connect HPNA device or other transceivers that support MII interface. It supports 8-bit, 16-bit and 32-bit uP interfaces to internal memory accesses for different processors.
- Integrated 10/100M transceiver
- Supports back pressure mode for half-duplex mode flow control
- IEEE802.3x flow control for full-duplex mode
- Supports automatically load vendor ID and product ID from EEPROM
- Supports 4 GPIO pins
- Supports wakeup frame, link status change and magic packet events for remote wake up
- Very low power consumption mode
- 100-pin LQFP with CMOS process
DM9000EP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | LQFP |
| Supply Voltage (DC) | 3.13V (min) |
| Supply Current | 100 mA |
| Number of Positions | 100 Position |
| Data Rate | 100 Mbps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage (Max) | 3.465 V |
| Supply Voltage (Min) | 3.135 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
| HK STC License | NLR |
