Description

Description
The DRV134 and DRV135 are differential output amplifiers that convert a single-ended input to a
balanced output pair. These balanced audio drivers consist of high performance op amps with on-chip
precision resistors. They are fully specified for high performance audio applications and have excellent ac
specifications, including low distortion (0.0005% at 1 kHz) and high slew rate (15 V/µs).
Features
• Balanced Output
• Low Distortion: 0.0005% at f = 1 kHz
• Wide Output Swing: 17Vrms into 600 Ω
• High Capacitive Load Drive
• High Slew Rate: 15 V/µs
• Wide Supply Range: ±4.5 V to ±18 V
• Low Quiescent Current: ±5.2 mA
• 8-Pin DIP, SO-8, and SOL-16 Packages
• Companion to Audio Differential Line Receivers: INA134 and INA137
• Improved Replacement for SSM2142
Applications
• Audio Differential Line Drivers
• Audio Mix Consoles
• Distribution Amplifiers
• Graphic and Parametric Equalizers
• Dynamic Range Processors
• Digital Effects Processors
• Telecom Systems
• Hi-Fi Equipment
• Industrial Instrumentation

Show

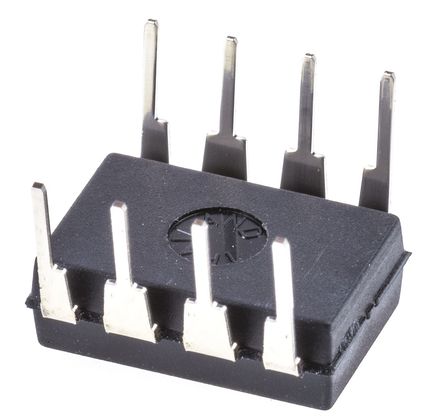

DRV134PA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	4.50V (min)
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	46 dB
Quiescent Current	5.20 mA
Slew Rate	15.0 V/μs
Gain	6 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	46 dB
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2019/01/15
