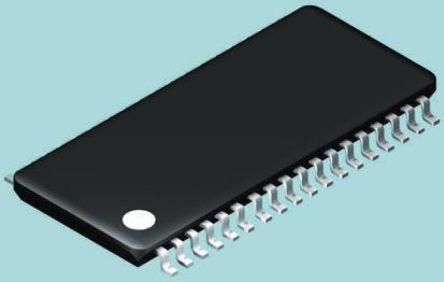

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DRV8332DKD is a 13A 3-phase brushless DC Motor Driver with inrush protection. Because of the low RDS (ON) of the power MOSFETs and intelligent gate drive design, the efficiency of these motor drivers can be up to 97%. This high efficiency the use of smaller power supplies and heat sinks and the devices are good candidates for energy-efficient applications. The DRV8332 require two power supplies, one at 12V for GVDD and VDD and another up to 50V for PVDD. The motor driver can operate at up to 500kHz switching frequency while still maintaining precise control and high efficiency. The devices also have an innovative protection system safeguarding the device against a wide range of fault conditions that could damage the system. These safeguards are short-circuit protection, over-current protection, under-voltage protection and two-stage thermal protection. The driver has a current-limiting circuit that prevents device shutdown during load transients such as motor start-up.
- Independent control of three phases
- Up to 500kHz PWM operating frequency
- Integrated self-protection circuits including over-temperature, overload and short-circuit
- Programmable cycle-by-cycle current limit protection
- Independent supply and ground pins for each half bridge
- Intelligent gate drive and cross conduction prevention
- No external snubber or Schottky diode is required
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
DRV8332DKD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | BSSOP-36 |
| Supply Voltage (DC) | 0.00V(min), 52.5V(max) |
| Number of Outputs | 3 Output |
| Output Current | 8 A |
| Number of Positions | 36 Position |
| Drain to Source Resistance (on) (Rds) | 220 mΩ |
| Switching Frequency | 500 kHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 10.8V ~ 13.2V |
| Supply Voltage (Max) | 52.5 V |
| Supply Voltage (Min) | 0 V |
| Show | |
| Size-Length | 16 mm |
| Size-Width | 11.1 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
