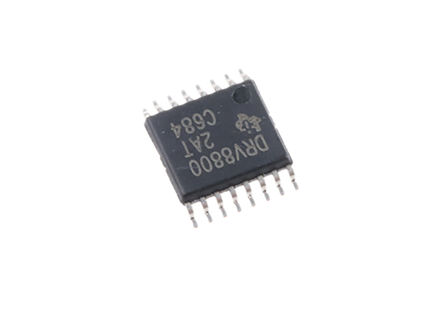

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8800PWP is a DMOS full-bridge Motor Driver contains a full H-bridge which can be used to drive a brushed DC motor, one winding of a stepper motor or other devices such as solenoids. A simple PHASE-ENABLE interface allows easy interfacing to controller circuits. The output stages use N-channel power MOSFETs configured as an H-bridge. The DRV880xis capable of peak output currents up to ±2.8A and operating voltage up to 36V. An internal charge pump generates the needed gate drive voltages. A low-power sleep mode is provided which shuts down internal circuitry to achieve a very low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection functions are provided for under-voltage, charge pump fault, overcurrent, short-to-supply, short-to-ground and over-temperature. Fault conditions are indicated through the nFAULT pin.
Low RDS(on) MOSFETs (0.4R typical)
Low-power sleep mode
100% PWM supported
3A Overcurrent threshold
3µs Overcurrent deglitch time
1.2ms Overcurrent retry time
Green product and no Sb/Br

Show

DRV8800PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Supply Voltage (DC)	8.00V (min)
Number of Outputs	1 Output
Output Current	2 A
Number of Positions	16 Position
Drain to Source Resistance (on) (Rds)	830 mΩ
Power Dissipation	3000 mW
Quiescent Current	3.20 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3000 mW
Supply Voltage	8V ~ 38V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	8 V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
