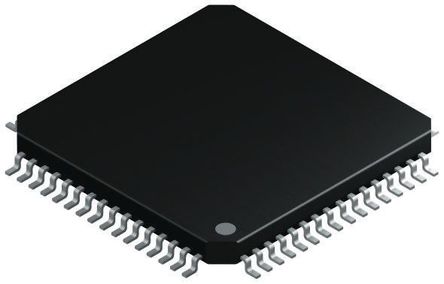

Image is for your reference only,please check specifications for details

DRV8809PAP - TI
Manufacturer:
TI
ManyChip's Part#:
MC16364267
Category:
Motor Driver
Package:
TQFP-64
Datasheet:
Datasheet 3D Model
Description:
Motor / Motion / Ignition Controllers & Drivers Combo motor Drvr w/ DC-DC converters
Stock Locations:
Availability:
255 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8809/DRV8810 provides an integrated motor driver solution. The chip has four H-bridges internally and is configurable to eight different modes of combination motor driver control.
The output driver block for each H-bridge consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The stepper motor control has a 16-step mode programmable through the 3-wire serial interface (SPI). The SPI input pins are 3.3-V compatible and 5-V tolerant.
The DRV8809/DRV8810 has three DC-DC switch-mode buck converters to generate a programmable output voltage from 1.5 V to 80% of VDIN (channel A) or up to 10 V (for channel B and channel C), with up to 1.5-A load current capability. The outputs are selected using the C_SELECT terminal at start-up or using serial interface during operation.
An internal shutdown function is provided for overcurrent protection (OCP), short-circuit protection, overvoltage/undervoltage lockout (UVLO), and thermal shutdown (TSD). Also, the device has a reset function that operates at power on and at input to the In-Reset pin.

Show

DRV8809PAP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Number of Outputs	3 Output
Output Current	800 mA
Drain to Source Resistance (on) (Rds)	0.5 Ω
Power Dissipation	4000 mW
Switching Frequency	1.6 MHz
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	-10 ℃
Power Dissipation (Max)	4000 mW
Supply Voltage	7V ~ 40V
	Show
Size-Length	10.2 mm
Size-Width	10.2 mm
Size-Height	1.05 mm
Operating Temperature	0℃ ~ 120℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
