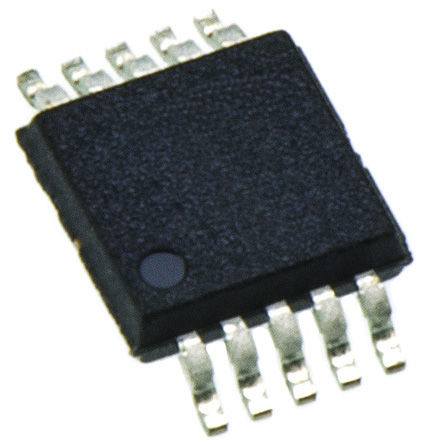

DRV8830DGQ - TI
Manufacturer:
TI
ManyChip's Part#:
MC18782136
Category:
Motor Driver
Package:
PowerPad-MSOP-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DRV8830DGQ Motor Driver/Controller, Half Bridge, 2.75V to 6V supply, 1A/2Outputs, MSOP-80
Stock Locations:
Availability:
282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.61

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DRV8830 device provides an integrated motor driver solution for battery-powered toys, printers, and other low-voltage or battery-powered motion control applications. The device has one H-bridge driver, and can drive one DC motor or one winding of a stepper motor, as well as other loads like solenoids. The output driver block consists of N-channel and P-channel power MOSFETs configured as an H-bridge to drive the motor winding.
Provided with sufficient PCB heatsinking, the DRV8830 can supply up to 1-A of DC/RMS or peak output current. It operates on power supply voltages from 2.75 V to 6.8 V.
To maintain constant motor speed over varying battery voltages while maintaining long battery life, a PWM voltage regulation method is provided. The output voltage is programmed through an I2C-compatible interface, using an internal voltage reference and DAC.
Internal protection functions are provided for over current protection, short-circuit protection, undervoltage lockout, and overtemperature protection.
The DRV8830 is available in a tiny 3-mm × 3-mm 10-pin VSON package and HVSSOP package with PowerPAD™ (Eco-friendly: RoHS & no Sb/Br).

Show

DRV8830DGQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	80 Pin
Case/Package	PowerPad-MSOP-10
Supply Voltage (DC)	2.75V (min)
Number of Outputs	2 Output
Output Voltage	1.285 V
Output Current	1 A
Number of Positions	80 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.75V ~ 6.8V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.75 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
