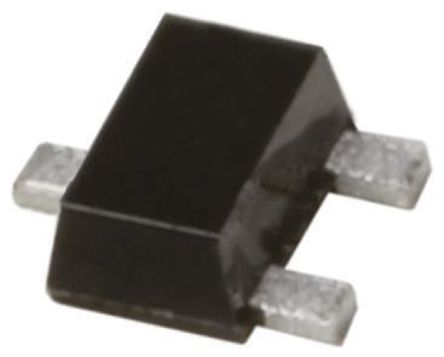

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * High forward current transfer ratio hFE with excellent linearity * Low collector-emitter saturation voltage VCE(sat) * Halogen-free / RoHS compliant (EU RoHS / UL-94 V-0 / MSL: Level 1 compliant) * Marking Symbol: C1 * Packaging : Embossed type (Thermo-compression sealing): 10000 pcs / reel (standard
DSC300100L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SSSMini3-F2-B |
| Number of Positions | 3 Position |
| Polarity | NPN |
| Power Dissipation | 100 mW |
| Breakdown Voltage (Collector to Emitter) | 50 V |
| Continuous Collector Current | 0.1A |
| hFE Min | 210 @2mA, 10V |
| Input Power (Max) | 100 mW |
| DC Current Gain (hFE) | 210 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 100 mW |
| Show | |
| Size-Length | 1.2 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.47 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
