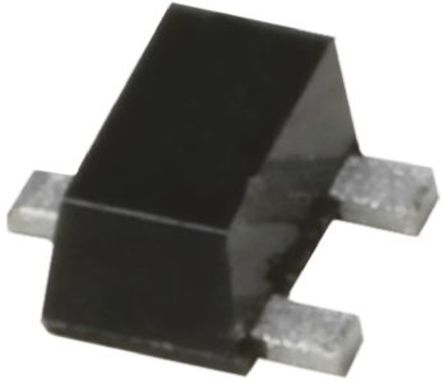

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Because of its uni-polar voltage control characteristics, the DSK9J01Q0L JFET transistor from Panasonic is perfect for preventing a voltage drop in your circuit. Its maximum power dissipation is 125 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This junction field effect transistor has an operating temperature range of -40 °C to 85 °C. It is made in a single configuration.
DSK9J01Q0L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SSMini3-F3-B |
| Power Dissipation | 125 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 125 mW |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.85 mm |
| Size-Height | 0.7 mm |
| Material | Silicon |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
