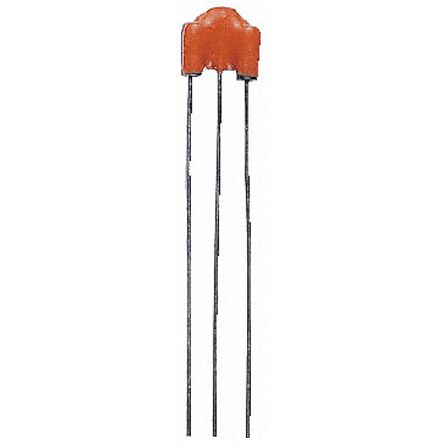

Image is for your reference only,please check specifications for details

DSS6NC52A271Q55B - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC11204386
Category:
RFI Shielding
Package:
Radial - 3 Leads
Datasheet:
Datasheet 3D Model
Description:
DSS Series 270pF 100V 6A Built in Ferrite Beads EMI Suppression Filter
Stock Locations:
Availability:
4,067 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DSS6NC52A271Q55B is a compact high-performance lead type EMI suppression Power Line Filter which can be mounted 2.54mm pitch. Its three terminal structure enables precise high frequency performance.
REACH compliant
270pF Capacitance
-25 to 85°C Operating temperature range
Leaded 3 terminal capacitors

Show

DSS6NC52A271Q55B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Radial - 3 Leads
Pin Pitch	2.50 mm
Voltage Rating (DC)	100 V
Operating Voltage	100 V
Current Rating	6 A
Capacitance	270 pF
Number of Channels	1 Channel
Shielding	No
Ripple Current	6000 mA
Current Rating (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (Max)	100 VDC
Voltage Rating	100 V
Resistance (DC Max)	270 Ω
	Show
Size-Length	8 mm
Size-Width	2.54 mm
Size-Height	7 mm
Pin Length	25 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
