Description

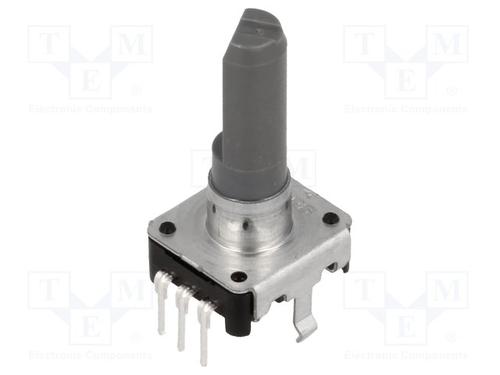

The EC12E1220405 is a 12mm Insulated Shaft Incremental Encoder operates in vertical direction. It is a standard type encoder features 12 detents, 12 pulses and it is suitable for use with personal/professional audio and home appliances applications.
Momentary push switch
Single pole and single throw (push-on) contact arrangement
15mm Actuator
30000 Cycles operating life
10MR/50VDC Minimum insulation resistance
-10 to +70°C Operating temperature

Show

EC12E1220405 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	Through Hole
Supply Voltage (DC)	5.00V (max)
Operating Voltage	5 VDC
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Detents	24 Detent
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-10 ℃
Supply Voltage (Max)	5 VDC
	Show
Size-Length	14 mm
Size-Height	25 mm
Operating Temperature	-10℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8543709650
HK STC License	NLR
