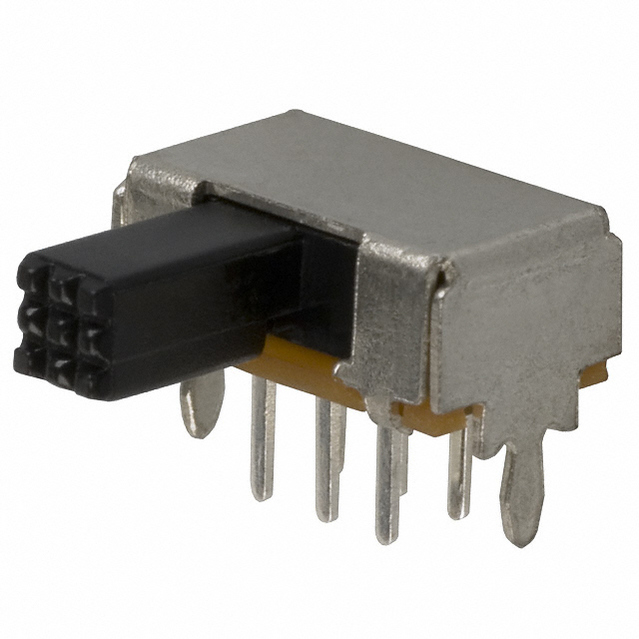

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

EG2208A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Contact Plating	Silver
Voltage Rating (DC)	30 V
Actuator Type	Standard
Current Rating	200 mA
Insulation Resistance	100 Ω
Orientation	Right Angle
Contacts Type	DPDT
Number of Positions	2 Position
Contact Resistance	20 mΩ
Voltage Rating	30 V
	Show
Size-Length	10.4 mm
Size-Width	12 mm
Size-Height	5 mm
Contact Material	Copper Alloy
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
