Description
- High Power Type PF, PE, PC, PA, PB, LC, LA
- ■ Features
- ● Low DCR and large current capability, suitable for power circuitry.
- ● Wire wound, resin molded chip inductor. (PC, PA, PB, LC, LA type)
- ● Unique Ceramic Core/Laser-cut technology (PF, PE type)
- ● Capable of being Re-fl ow or fl ow soldered.
- ● Wide line-up from 1005 to 4532 case sizes.
- ● Good for mounting.
- ● RoHS compliant
- ■ Recommended Applications
- ● AV equipment, Wireless communication equipment and various types of general electronic equipment.

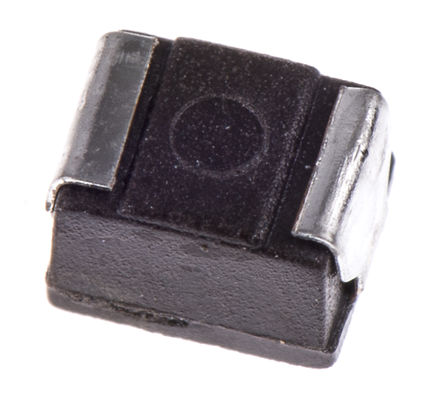

ELJPA101KF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 3225 |
| Case/Package | 1210 |
| Current Rating | 90 mA |
| Capacitance Tolerance | ±10 % |
| Inductance | 100 µH |
| Self Resonant Frequency | 6.5 MHz |
| Q-Factor | 20.0 |
| Part Family | ELJPA |
| Resistance | 5.00 Ω |
| Resonant Frequency | 6.50 MHz |
| Inductance Tolerance | ±10 % |
| Test Frequency | 796 kHz |
| DC Resistance (DCR) | 5 Ω |
| Current Rating (DC) | 90 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Resistance (DC Max) | 5 Ω |
| Show | |
| Size-Length | 3.2 mm |
| Size-Width | 2.5 mm |
| Size-Height | 2.2 mm |
| Operating Temperature | -20℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
