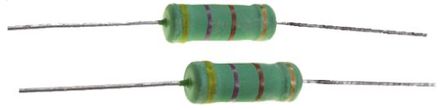

Image is for your reference only,please check specifications for details

EP3W47RJ - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC54491500
Category:
Through-Hole Resistor
Datasheet:
Datasheet 3D Model
Description:
Through Hole Wirewound Resistor, EP Series, 47Ω, 3W, - 5%, 500V, Axial Leaded
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**EP Series Anti Surge Resistor, Axial**
Robustly manufactured with high quality materials these resistors offer flame proof coating and designed to withstand power surges of up to 12KV

Show

EP3W47RJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	500 V
Capacitance Tolerance	±5 %
Power Rating	3 W
Resistance	47 Ω
Resistance Tolerance	±5 %
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	500 V
	Show
Size-Length	17.5 mm
Size-Diameter	Φ6.50mm
Lead Length	28 mm
Operating Temperature	-55℃ ~ 155℃
Temperature Coefficient	±400 ppm/℃
Product Lifecycle Status	Active
Packaging	Ammo Pack
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
