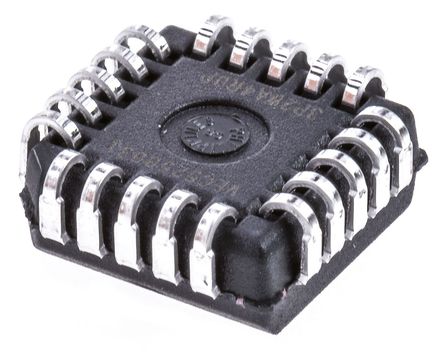

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EPC1LC20N is a Configuration Device for SRAM-based LUT devices. With SRAM-based devices, configuration data must be reloaded each time the device powers up, the system initializes or when new configuration data is needed. Programming support with the Altera Programming Unit (APU) and programming hardware from Data I/O, BP Microsystems and other third-party programmers.
- Easy-to-use 4-pin interface
- Low current during configuration and near-zero standby mode current
EPC1LC20N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | PLCC-20 |
| Frequency | 16.7 MHz |
| Supply Voltage (DC) | 5.00 V, 5.25 V (max) |
| Number of Positions | 20 Position |
| Clock Speed | 8 MHz |
| Memory Size | 125000 B |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 8.97 mm |
| Size-Width | 8.97 mm |
| Size-Height | 3.81 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | 3A991.b.2.a |
