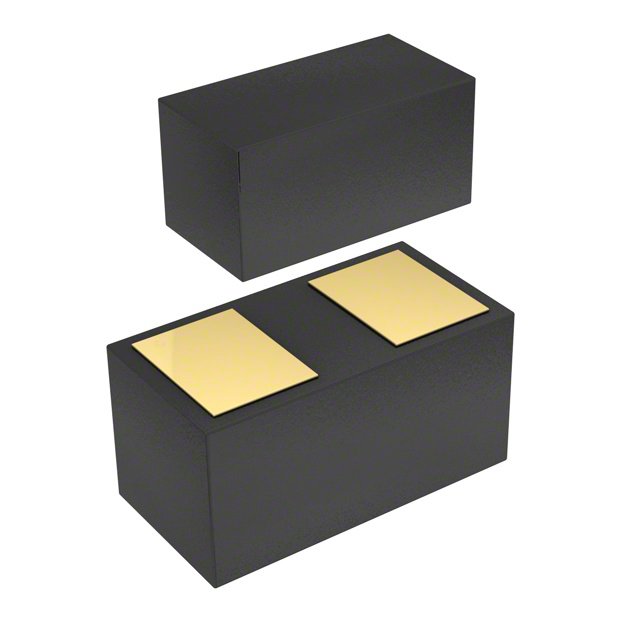

Image is for your reference only,please check specifications for details
- ESD113B102ELSE6327XTSA1 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC36616589
-
Category:TVS Diode
-
Package:TSSLP-2-4
-
Datasheet:Datasheet 3D Model
-
Description:Trans Voltage Suppressor Diode, 3.6V V(RWM), Bidirectional, 1Element, Silicon, GREEN, PLASTIC, TSSLP-2-4, 2Pin
-
Stock Locations:
-
Availability:280 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.09
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ESD113-B1-02ELS E6327, SP001061696
ESD113B102ELSE6327XTSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | TSSLP-2-4 |
| Capacitance | 0.65 pF |
| Number of Positions | 2 Position |
| Clamping Voltage | 20 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 0.27 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
